Precision Automotive Steel Tubes En10305-1 Ready to Honed steel pipes

Product Categories
Torich International Limited
Contact Now

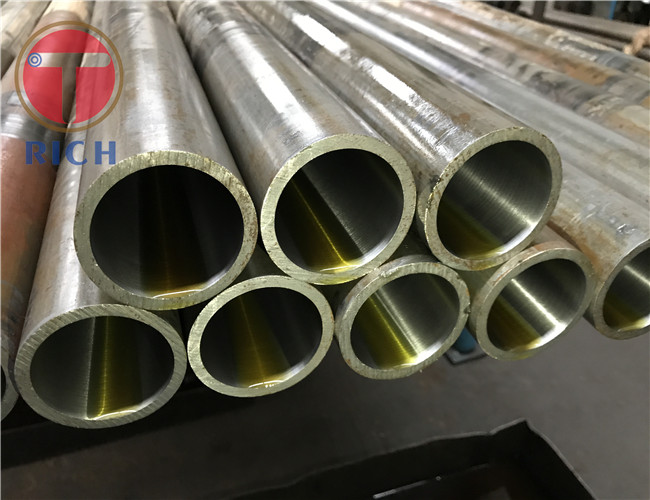

Precision Automotive Steel Tubes En10305-1 Ready to Honed steel pipes

Brand Name : Torich

Model Number : EN10305-1

Certification : ISO 9001 ISO14001 TS16949

Place of Origin : China

MOQ : 5tons

Price : 1200-1400USD/ton

Payment Terms : L/C, T/T

Supply Ability : 5000tons per year

Delivery Time : 5-8 week days

Packaging Details : In bundles

Material : E355 E235 St52 16Mn 1045

Standard : EN10305-1

OD : 6 - 350 mm

WT : 1 - 35 mm

Application : Mechanical purpose

Length : max 12000mm

Contact Now

Precision Automotive Steel Tubes En10305-1 Ready to Honed steel pipes

Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
Standard: EN10305-1 ASTM A519 GB/T3639 DIN2391 JIS G3445
Material:E235/ SAE1020/ SAE 1045 /10 # 20# 45#/ /DIN ST52/STKM 11A /STKM12B
Straightness:1/1000m
Tolerance: OD≤0.08mm WT:≤+/-0.15
Improve the precision with method: Cold drawn/DOM

Product Feature:
1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )

Chemical composition %(Max)
C
Si
Mn

P
S
E235
0.22
0.55
1.60
0.025
0.025
SAE1020
0.18-0.23
0.30-0.60
0.04
0.05
SAE 1045
0.43-0.50
0.60-0.90
0.04
0.05
10 #
0.07-0.13
0.17-0.37
0.35-0.65
0.035
0.035
20#
0.17-0.23
0.17-0.37
0.35-0.65
0.035
0.035
45#
0.42-0.50
0.17-0.37
0.50-0.80
0.035
0.035
St52
0.22
0.55
1.6
0.25
0.025
STKM 11A
0.12
0.35
0.6
0.04
0.04
STKM12B
0.20
0.35
0.6
0.04
0.04

1.+C /BK
No heat treatment after final cold drawing process.
2.+LC/BKW
After the final heat treatment there's a suitable drawing pass.
3.+SA/BKS
After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.
4.+A/GBK
After the cold drawing process the tubes are annealed in a controlled atmosphere.
5.+N/NBK
After the final cold drawing operation the tubes are normalized in a controlled atmosphere.

Annealing /+A/GBK Bright Annealing/+N/NBK

Items & Condition
Delivery: 30-45days
Payment : T/T. LC.Alibaba Tade Assurance Order
Packaging: In Hexagonal bundles ,Wooden boxes packaging.
Quantity tolerance: +/-10%
Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).
Mill Test Certificate:EN10204 3.1

Application:

. Automotive components

. Tubes for structural applications
. Standard mechanical tubing
. Hydraulic Cylinder Applications
. Heavy Equipment And Agriculture
