42.4*6.8 45MnMoB 30 Crmnsia DZ40 DZ60 Geological Drill Pipes

Product Categories
Torich International Limited
Contact Now

42.4*6.8 45MnMoB 30 Crmnsia DZ40 DZ60 Geological Drill Pipes

Brand Name : Torich

Model Number : 40crni2mo

Certification : ISO9001

Place of Origin : China

MOQ : 5tons

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000tons per year

Delivery Time : 5-8 weeks

Packaging Details : In bundles or in wooden boxes package

Material : 45MnMoB DZ40 DZ60

Length : Random Length

Machining : Cut

Origin : China

End : Plain

Certificate : EN10304.3.1

Contact Now

42.4*6.8 45MnMoB DZ40 DZ60 Geological Drill Pipes

Key Word
45MnMoB Seamless Drill Tubes
Material
45MnMoB, 10#, 20#, 45#, 4130, 4140, 16Mn etc
Size
OD: 5-420mm; WT: 0.5-50mm; Length: 3450mm, 3500mm, max12000mm
Technique
Cold Drawn Seamless
Application
For wire-line drill rods,core barel tubes,drill rods coupling casing
Chemical composition of 45MnMoB
C: 0.41-0.49, Si: 0.17-0.37, Mn: 0.9-1.2, S: 0.04max, P: 0.04max, Mo: 0.2-0.3, B: 0.001-0.005

Tolerance of Outer Diameter and Wall Thickness

Standard
Production Method
Tube Size
Tolerance
GB/T9808-2008
Hot Rolled
OD
(+1.0%D) or +0.65
(-0.5%D) -0.35
WT
≤10
(+15%S)or +0.45
(-10%S) -0.35
>10
(+12.5%S, -10%S)
Cold Drawn(rolled)
OD
±0.50%D or ±0.20
WT
±8%S or ±0.15
Q(N)/T118-2010
Cold Drawn
OD
±0.40%D or ±0.20
WT
±7%S or ±0.15

Mechanical Property

Steel Grade
Tensile Strangth Rm/MPa
Specifies the non-proportional extension strength Rp0.2/MPa
Percentage elongation after fracture
A/%
No less than
ZT380
640
380
14
ZT490
690
490
12
ZT520
780
520a
15b
ZT540
740
540
12
ZT590
770
590
12
ZT640
790
640
12
ZT740
840
740
10

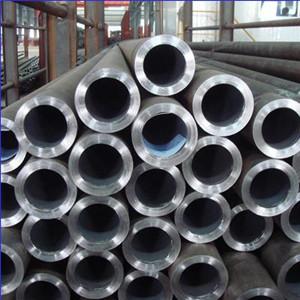

Product Show

42.4*6.8 45MnMoB 30 Crmnsia DZ40 DZ60 Geological Drill Pipes42.4*6.8 45MnMoB 30 Crmnsia DZ40 DZ60 Geological Drill Pipes
